7193 Service Guide Chapter 2: Installing the Printer

August 1998 7

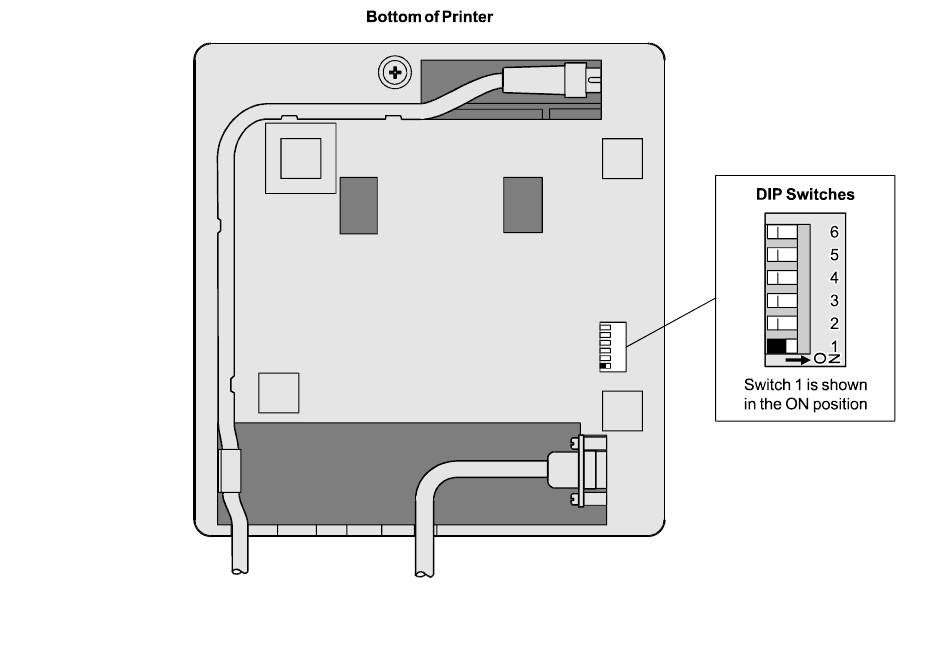

Note: Switch #1 is used to toggle between regular communication with the host computer

and Level 1 Diagnostics (used for the printer functions and level 1 diagnostic tests):

•

Switch #1 set to OFF: printer is ready to communicate with the host computer and

receive data (online mode)

•

Switch #1 set to ON: printer is in Level 1 Diagnostics (setup mode)

If you want the printer to communicate with the host computer, be sure switch 1 is OFF.

Use a paper clip or other pointed object to set the switch.

For additional information on the setup mode (Level 1 Diagnostics), see the “Diagnostics”

chapter.

Note: Some 7193 models may appear slightly different than what is shown in the

illustration. The procedures are the same for all models unless otherwise noted.
